Maxis Fibre Mesh

maxis Fibre Mesh is manufactured by fixing twisted glass fibers. Final “original grid” has high tensile strength, high mechanical and chemical resistance.

  .

It showed and proved high efficiency due to low thermal conductivity which is about 100 times lower than steel, costs for building heating are significantly reduced.



Product Description



Product Name maxis FRP mesh / maxis GFRP mesh
Colors Turquoise, Light Green, and Black
Features Corrosion resistance, light-weight, high-tensile strength, non-magnetic, and cost efficient

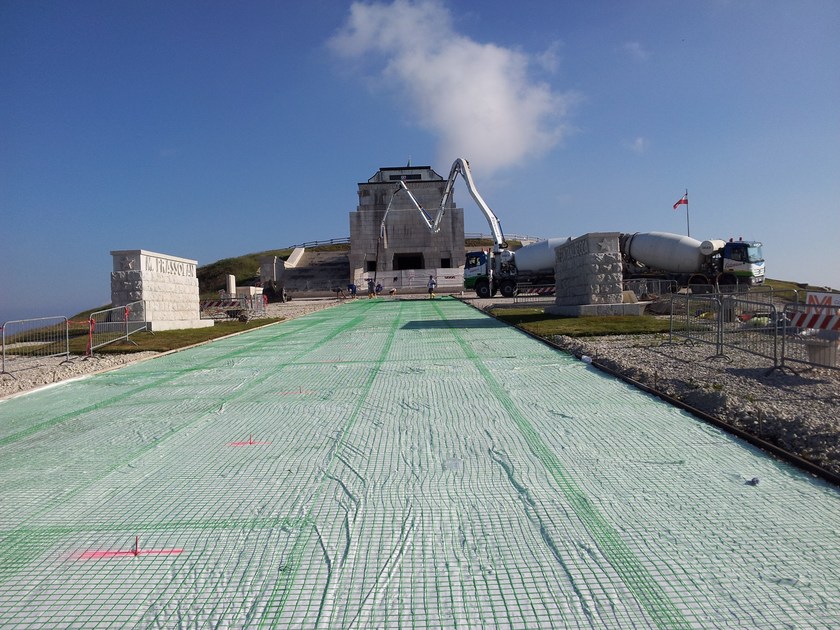

Used Underground diaphram wall, supporting piles, ocean engineering, roads and bridges
Specs:
                                Size 3, 4, 6, & 10mm diameter
                          Spacing #150, #200, #250, #300

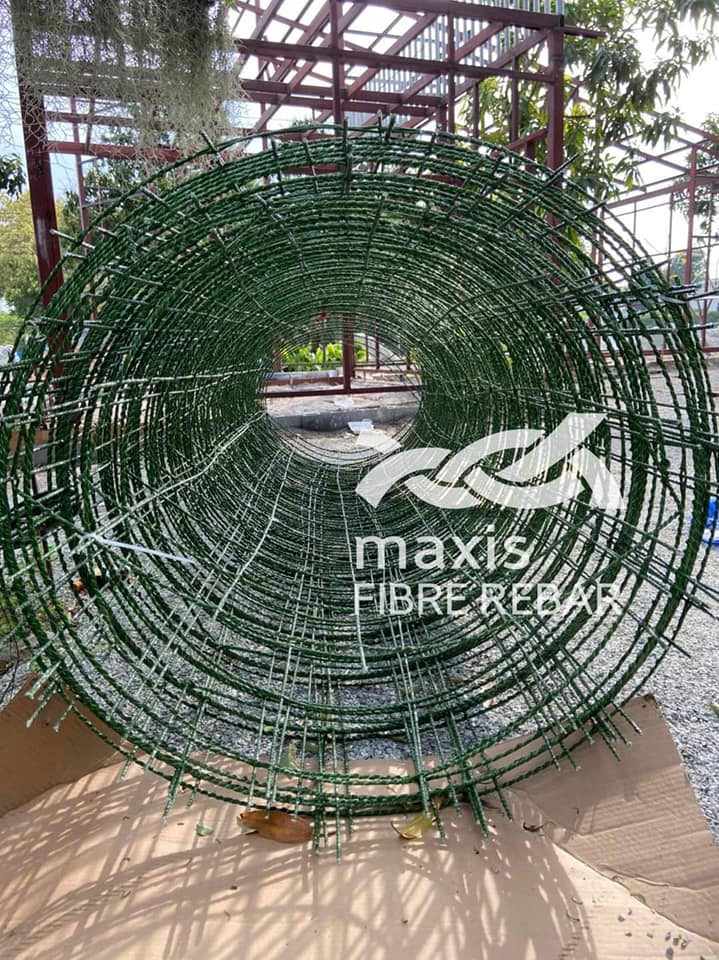

                            Length 3mm and 4mm diameter can roll up to 200 meter
  6mm and 10mm diameter can cut per sheet, maximum of 5.5 meter
                             Width Customized (maximum of 3 meter)
Packaging: EXPORT
                  20ft container per sheet: 5.5mLx2.1mW=11.55sqm per sheet
  10sheets/layer, total of 190-200sheets = 2178-2310sq. meters
                  40ft container per sheet: 5.5mLx2.1mW=11.55sqm per sheet
  10sheets/layer, total of 380-400sheets = 4389-4620sq. meters
  LOCAL
  can transport per rolls/sheets
Shipping Terms EXW
